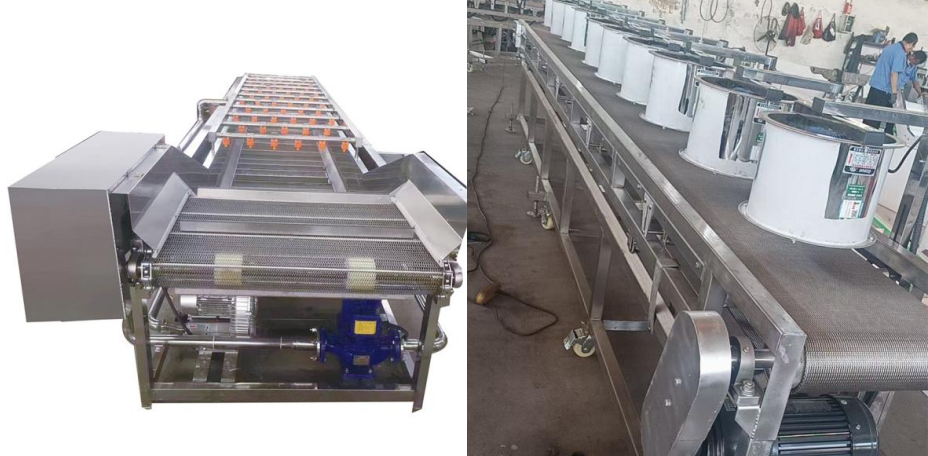

Wire mesh belt conveyor can be divided into mesh belt type and network chain, conveyor can transport material horizontally, obliquely and vertically, It can also form a space conveyor line.The conveying capacity of Conveyor is large, and the conveying distance is long, it can also finish several technological operations during transport.
Therefore, it is widely used in food, daily necessities, pharmaceutical, animal husbandry, aquatic products, clothing processing and other industries, the material,width and shape of mesh belt can be selected to meet horizontally transport and turning, lifting, declining and so on.
The conveyor belt is made of carbon steel, stainless steel and thermoplastic chain. According to the needs of your products, you can choose different widths and shapes of mesh belts to complete the requirements of plane transportation, plane turning, lifting and lowering.
It is a supplement to the traditional belt conveyor, which overcomes the shortcomings of belt tearing, puncture and corrosion of belt conveyor and provides customers with a safe, fast and simple maintenance transportation mode. Because the mesh belt conveyor uses modular mesh belt, and the transmission mode is driven by sprocket, mesh belt conveyor is not easy to snake and run off, and because the belt is thick and can withstand cutting and collision, and has the characteristics of oil resistance and water resistance, it will not cause trouble in maintenance when used in various industries, especially in replacing the plastic steel mesh belt conveyor on the conveyor belt. The mesh belt made of different materials can play different conveying roles and meet the needs of different environments. We modify the plastic material to make the conveyor belt meet the conveying requirements of the ambient temperature between MINUS 10 degrees and 120 degrees Celsius. The mesh belt pitch can be selected from 12.7, 19.05, 25.4, 27.2, 38.1 and 50.8, and the aperture ratio can be selected from 2% to 48%.
The materials of the conveyor belt are: PP (polypropylene), PE (polyethylene), ACETAL (acetal) and NYLON (nylon).
Widely used in the transportation of beverage bottles, aluminum cans, medicines, cosmetics, food and other industries. By selecting different mesh belts, it can be made into special equipment for industries such as bottle storage platform, elevator, sterilizer, vegetable cleaning machine, cold bottle machine and meat food transportation. Considering the tension limit of the mesh belt, the longest single line length is generally less than 20 meters.

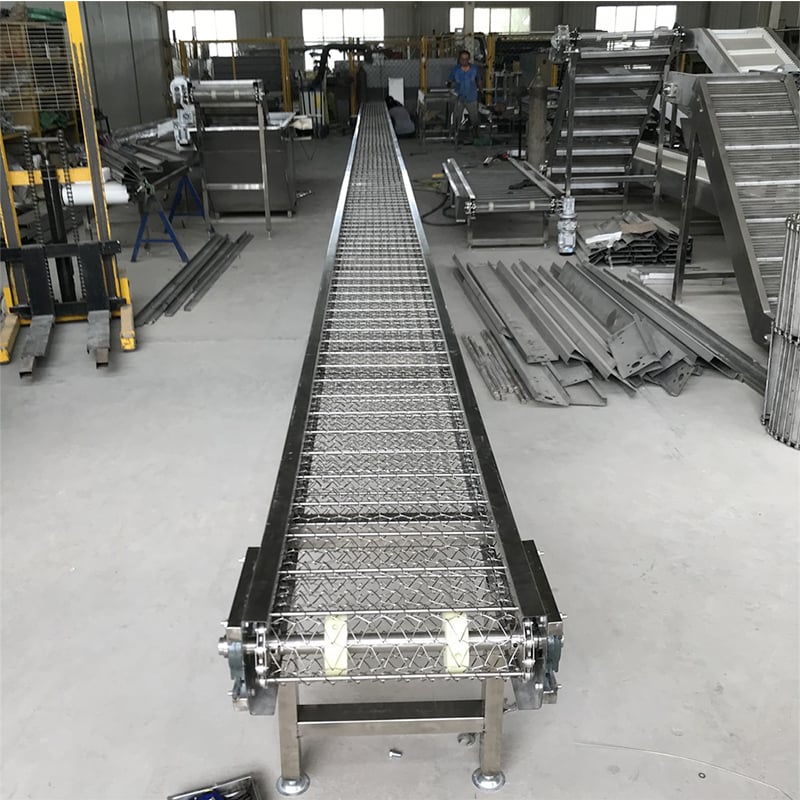

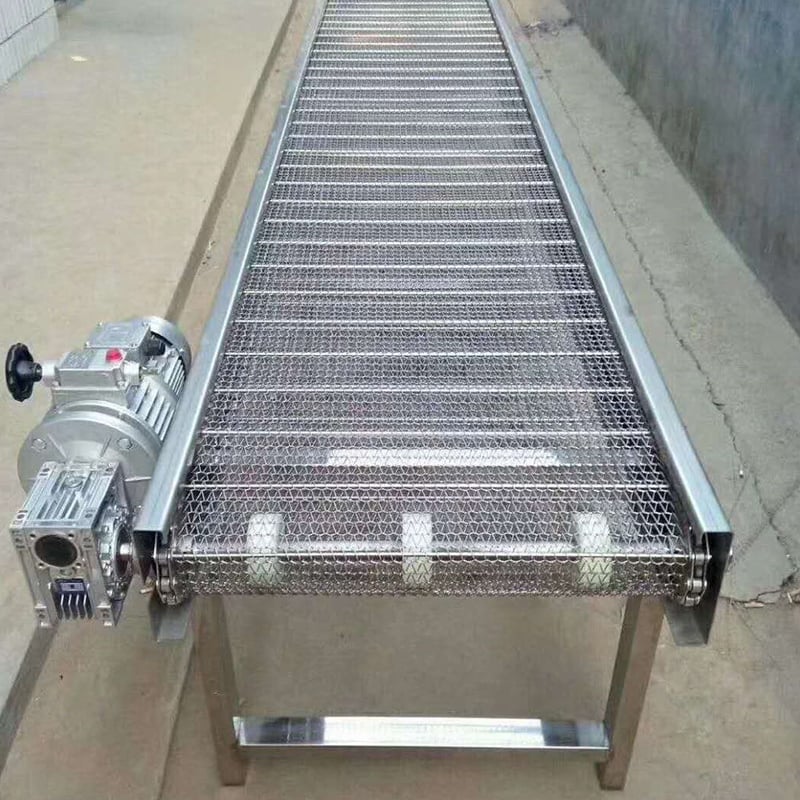

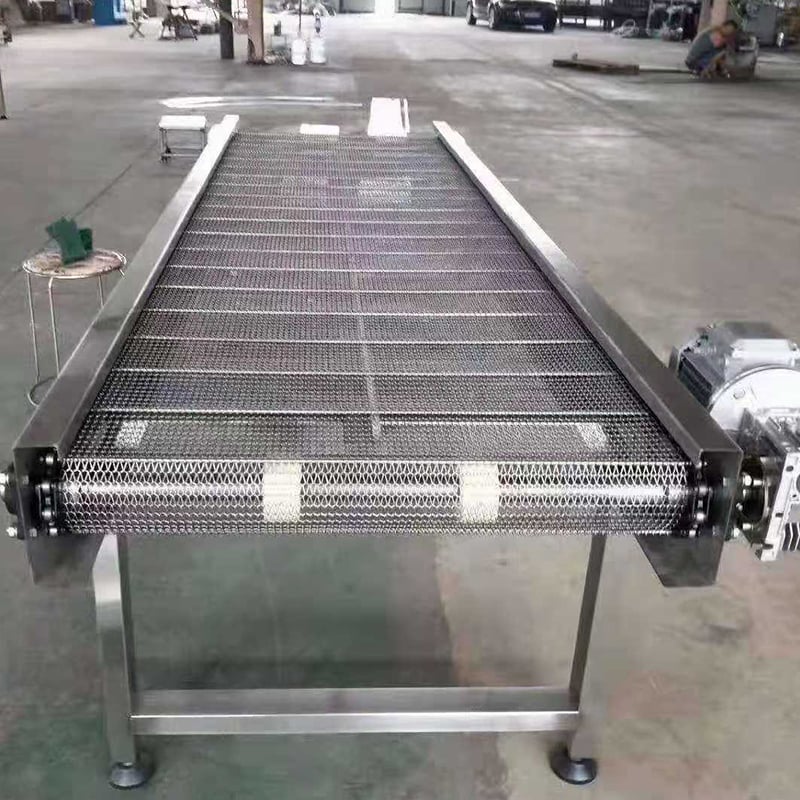

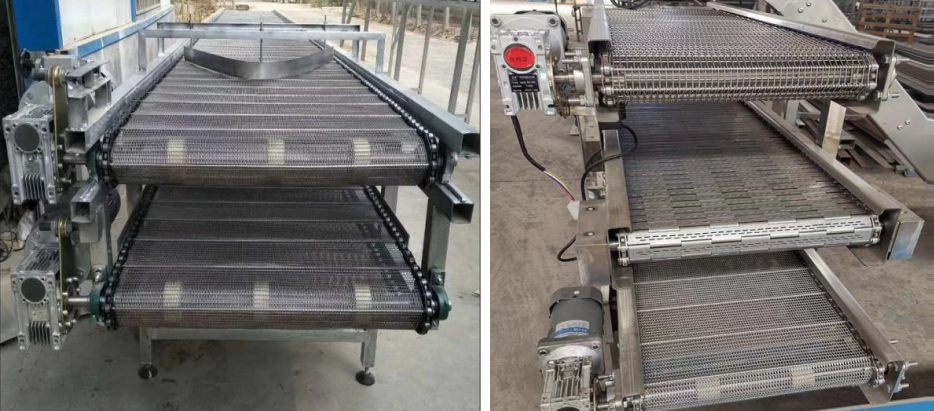

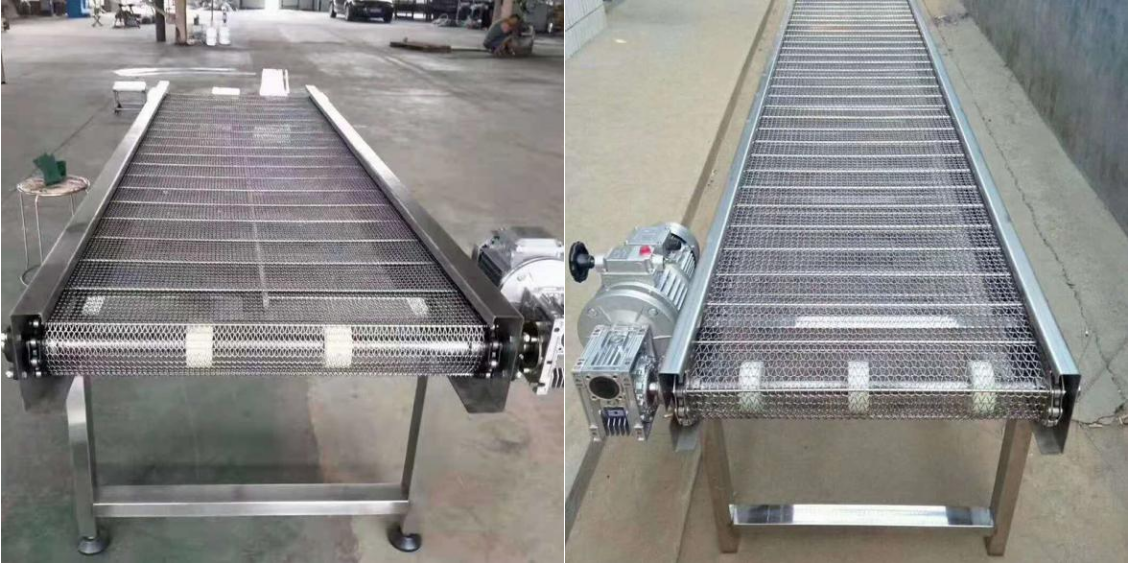

Metal mesh belt is used as the conveying carrier, and the frame is made of stainless steel and carbon steel.
Main features:

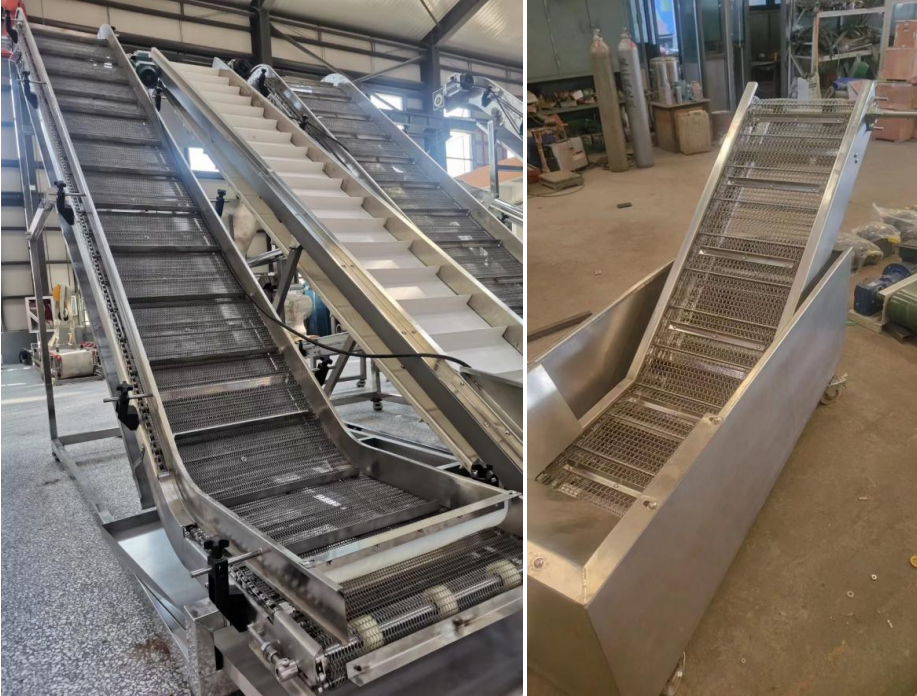

◆Large conveying capacity and long conveying distance, which can be combined into a space conveying line. The layout of the equipment is flexible, and it can be horizontal and inclined, and it can also be arranged by multiple sections of horizontal and inclined combination. According to the use scene, it can customize straight-line transportation, turning transportation, lifting and climbing transportation, etc.
◆High temperature resistance, can transport materials with temperature less than 600 degrees. If stainless steel mesh belt is used, it is suitable for high temperature heat treatment industry.
◆Low energy consumption, which greatly reduces the power consumption of the conveyor due to low running resistance.
◆ Long service life, long pitch and sleeve roller chain is used for the traction chain, and all parts of the chain are made of alloy steel, which is heat-treated and wear-resistant. The weight of conveying parts and materials is borne by the bearing parts, and the chain no longer bears the weight, thus reducing the wear and tear.

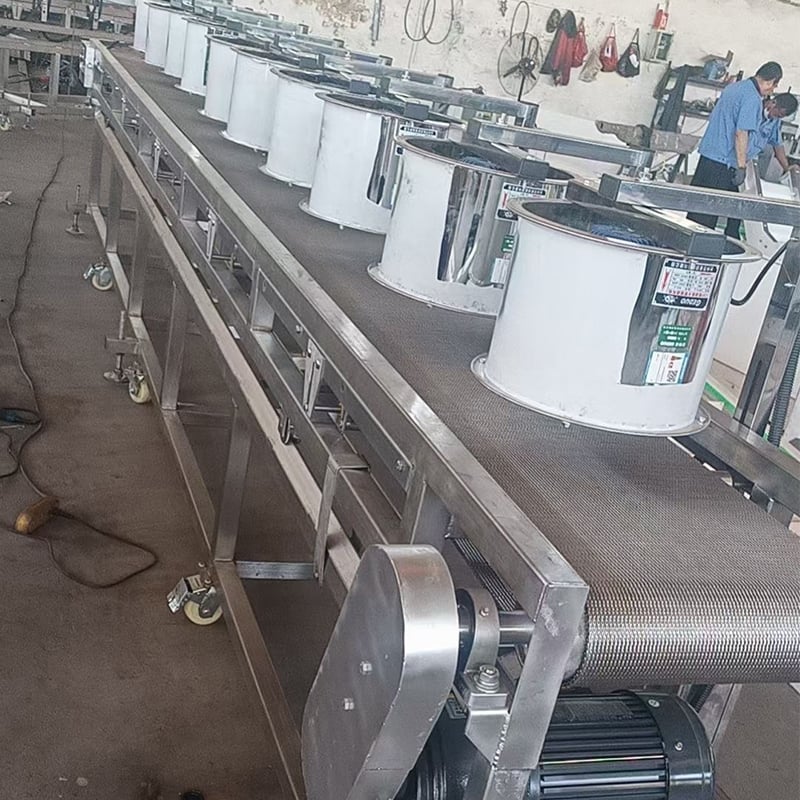

◆Strong adaptability, can work in corrosive liquid, and can also clean various products. The hollowing-out feature is most suitable for drying process, which can not only discharge moisture smoothly but also dry quickly.
◆ It is easy to maintain, and can be repaired in a small scope after being damaged, thus reducing waste. Therefore, metal mesh belt conveyor has been widely used in many industries.

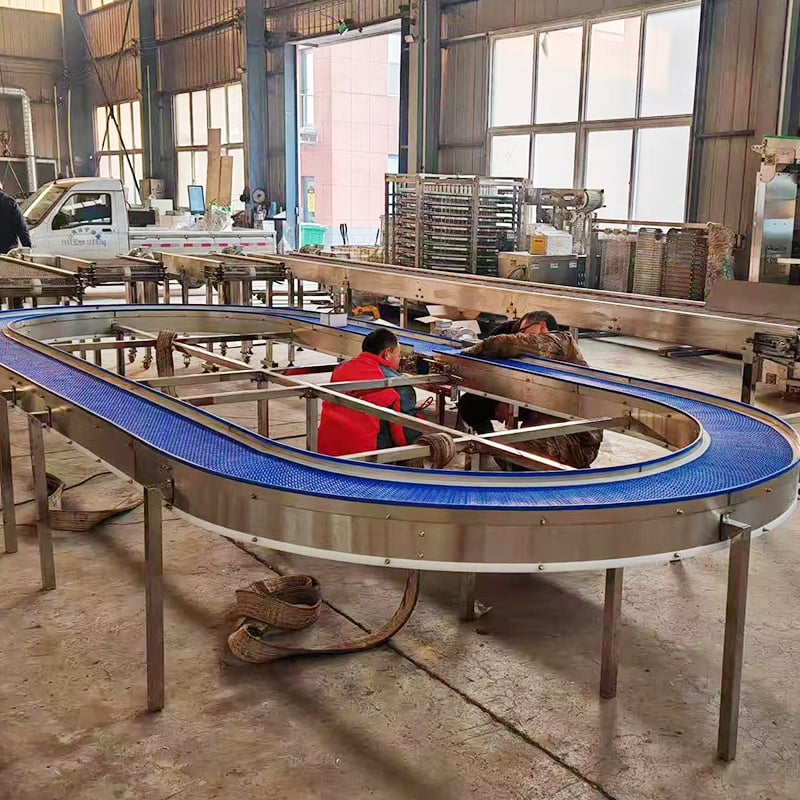

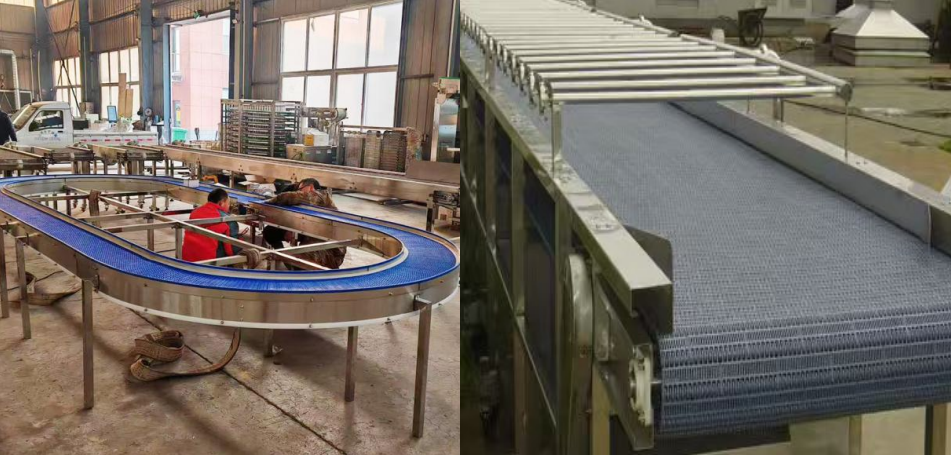

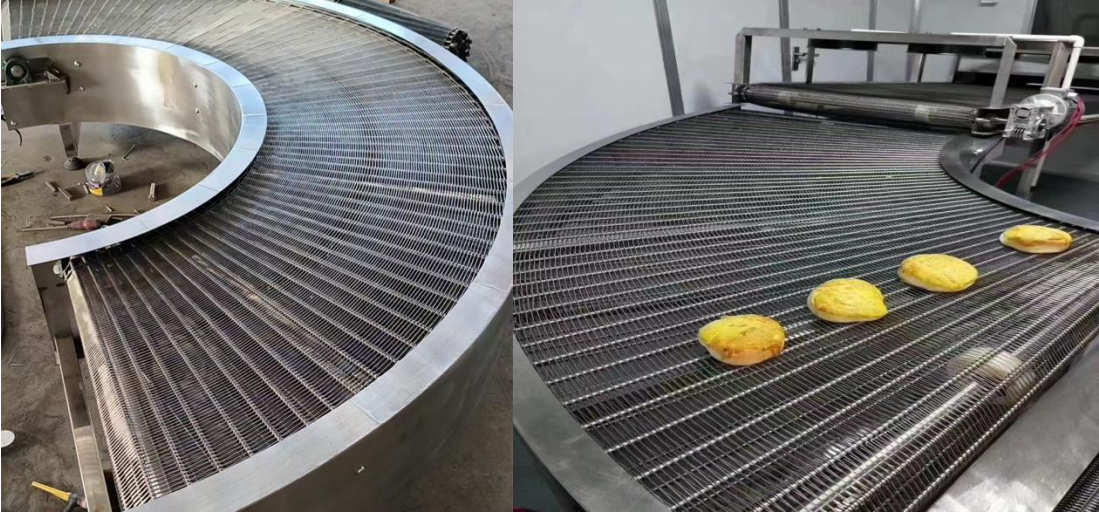

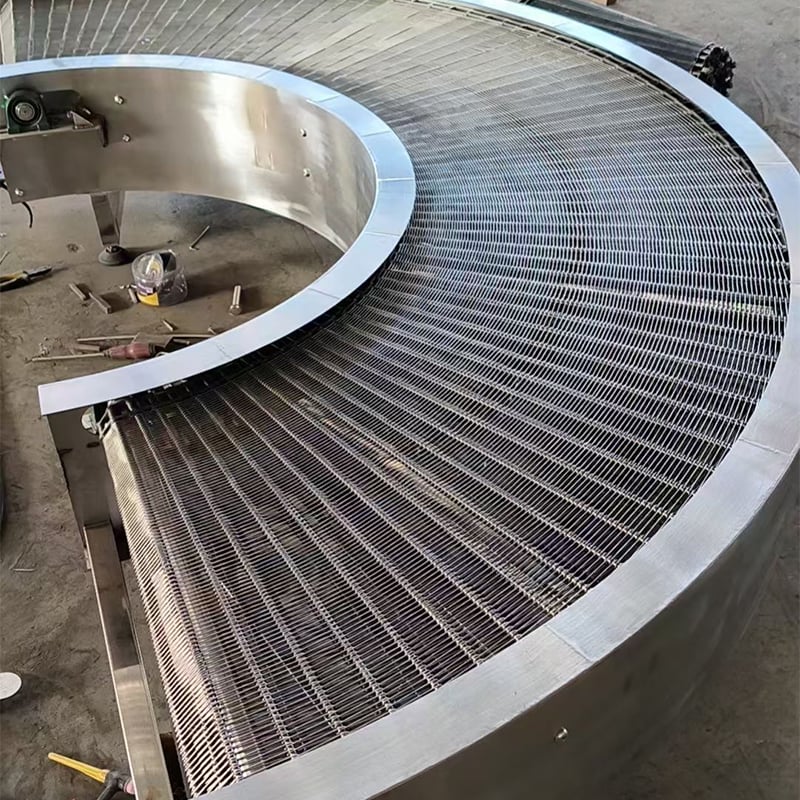

Turning mesh belt conveyor

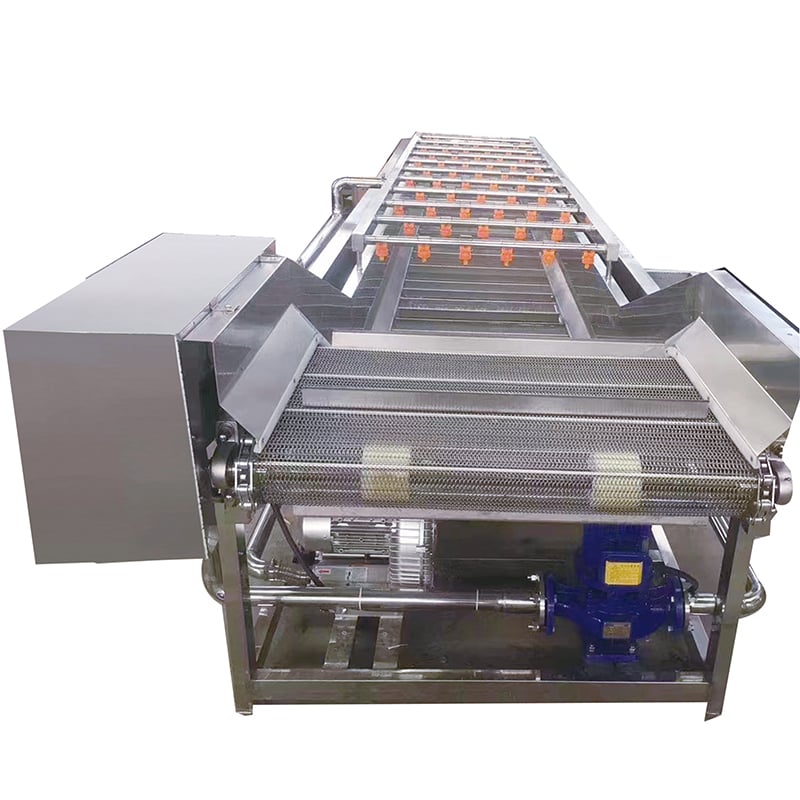

There are many kinds of mesh belt conveyors, and the conveyor belts can be equipped with lifting baffles and side baffles according to the usage scenarios. It is suitable for the heating and baking transportation of food, non-staple food, frozen aquatic products, packaging and transportation lines and electronic accessories, and can also be used in pharmaceutical, daily chemical and other industries. It is also widely used in the production and transportation of beverage bottles, aluminum cans, medicines, cosmetics, food and other industries. The linear metal mesh belt conveyor can be made into special conveying equipment for industries such as bottle cooler, elevator, bottle storage platform, vegetable cleaner, sterilizer and meat food conveyor by selecting different mesh belts. Considering the tension limit of metal mesh belt, the length of single wire is generally not more than 30 meters.
