Feartures：

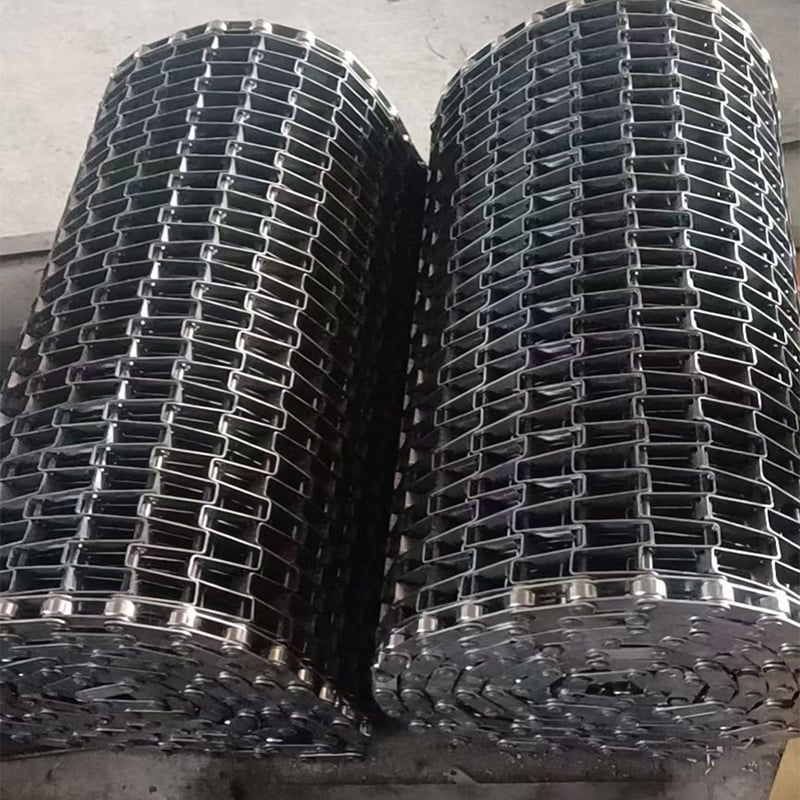

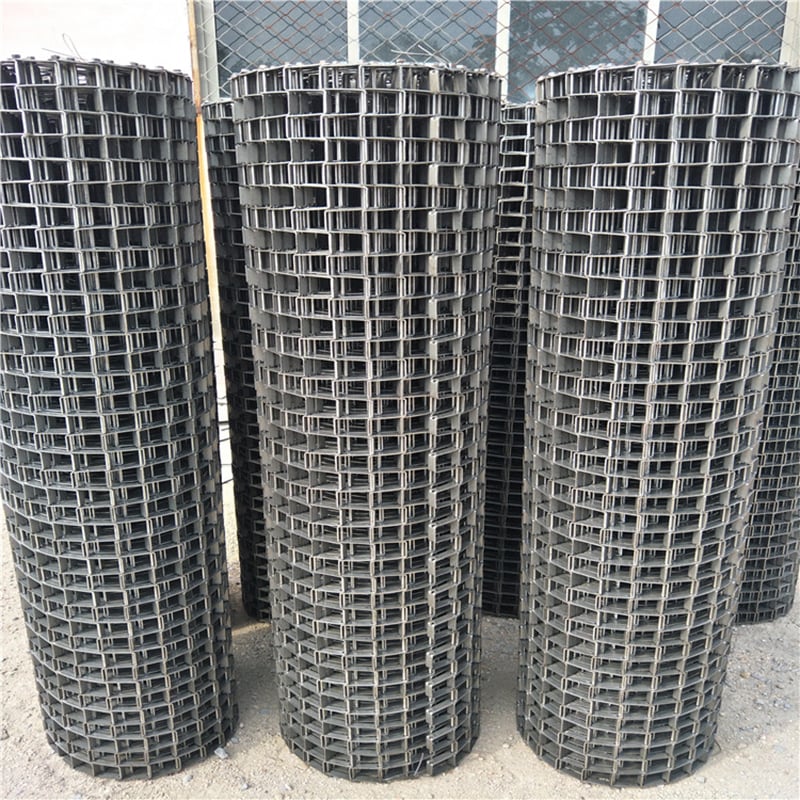

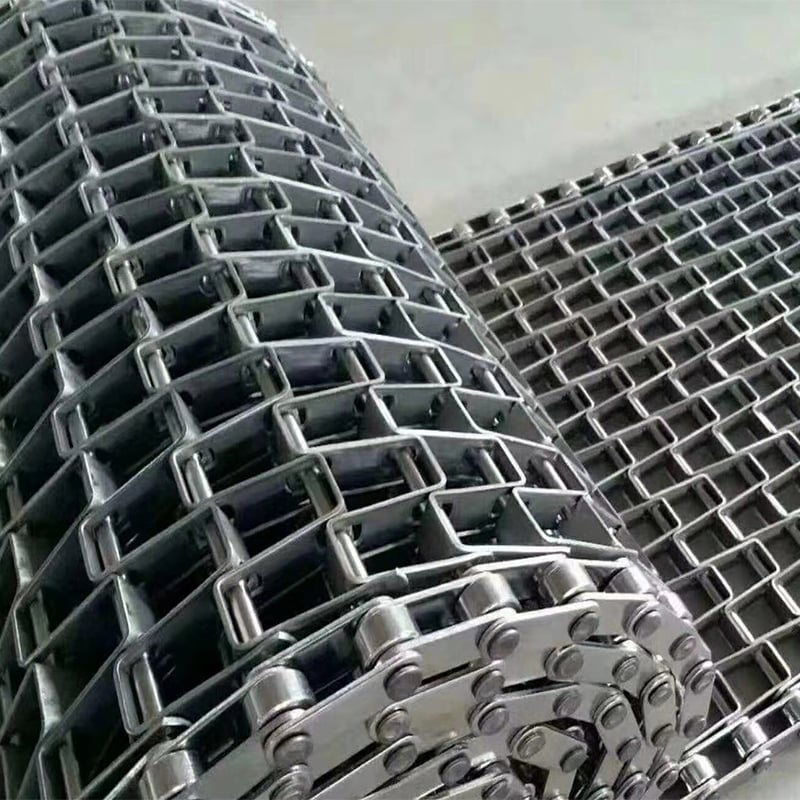

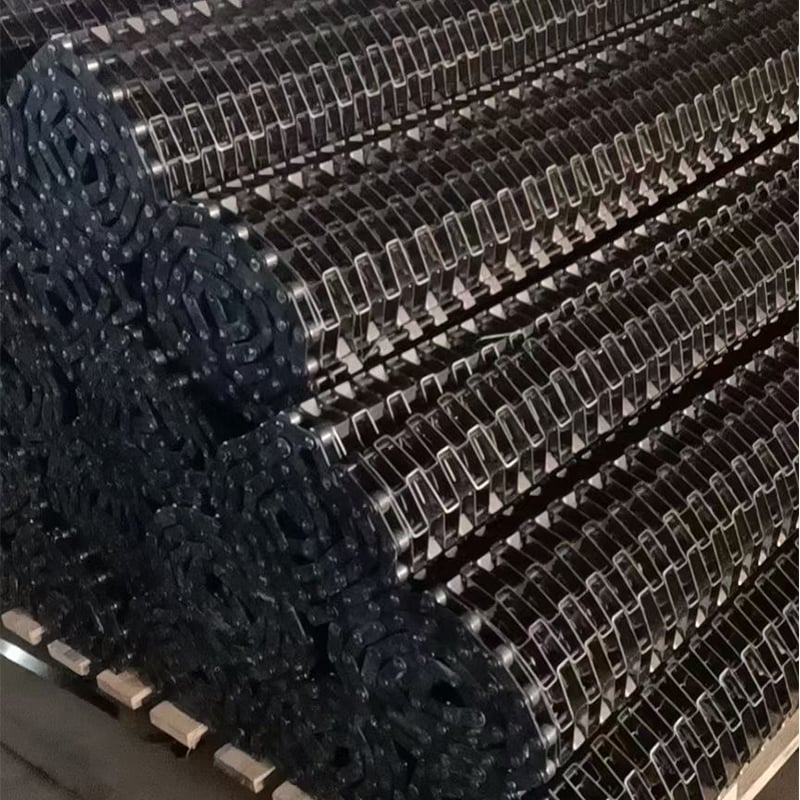

1、Also known as U-shaped chain, made by cross rod and metal sheet. Firm and durable,very little maintaince is needed ,with long life.

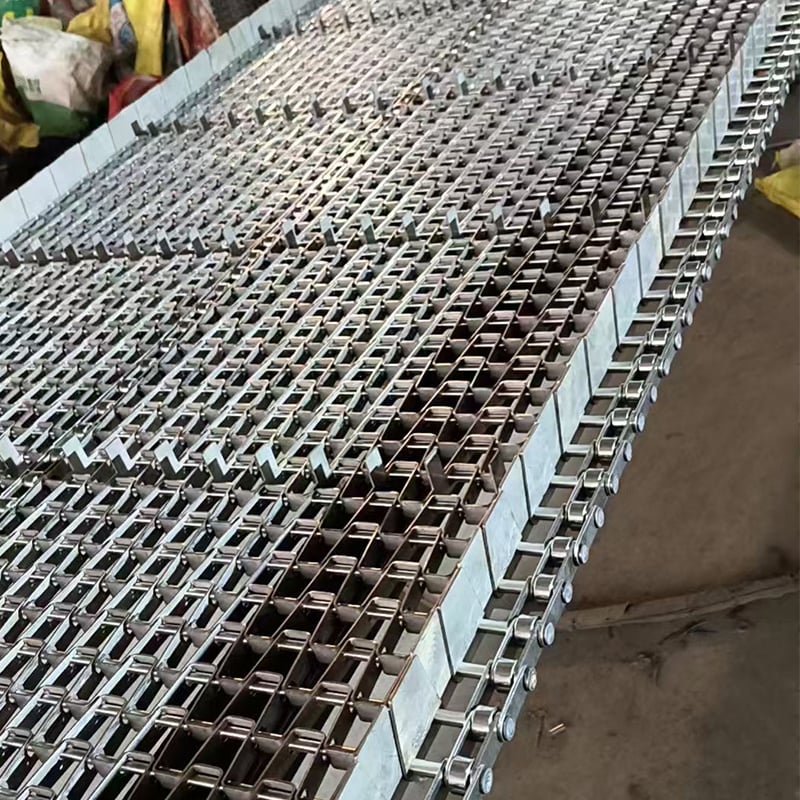

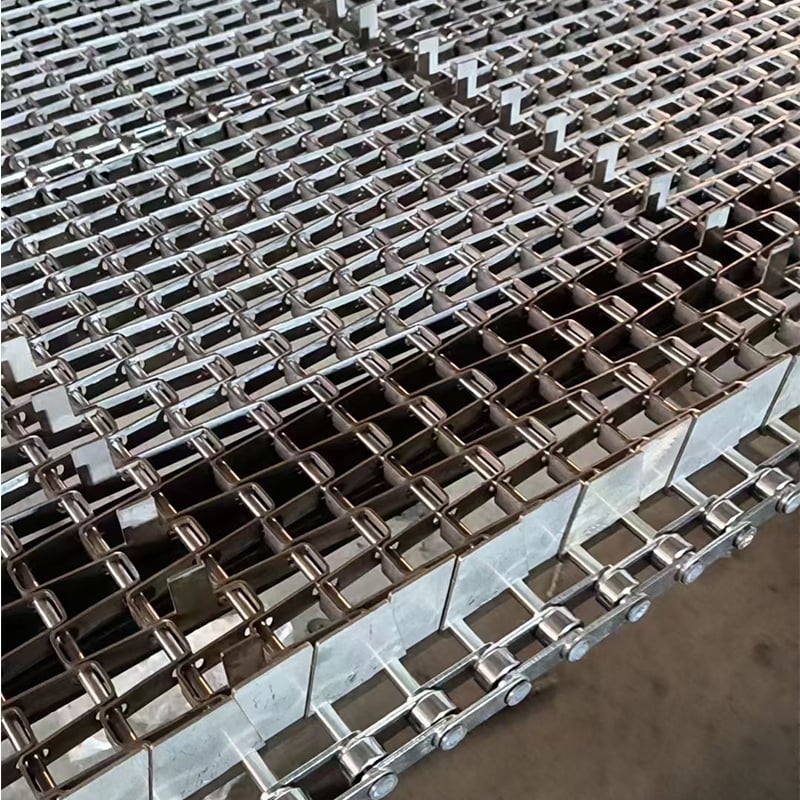

2、May customized lockstitching style in two sides of rod according to requirements, or offer side baffle guard and transverse baffle.
3、Material common used carbon steel, galvanized steel, stainless steel 304 and 316.
4、Mesh hole big,weight is light, convenient to transportation.
5、Surface smoothly, running stable,can’t go astray.
Main technical parameters：
|
Mesh belt type no. |
Thickness of metal strip㎜ |
The width of metal srip㎜ |
Spiral pitch㎜ |
pitch㎜ |
The diameter of rod strip |
Type of guarding |
|
FW2.5/8.0 |
2.5 |
20 |
31 |
27.3 |
8.0 |
1、 U-shaped chain 2、 roller chain shaped 3、 pier head shaped |
|
FW2.0/8.0 |
2.0 |
22 |
40 |
50.8 |
8.0 |
|
|
FW2.5/2.5 |
2.5 |
16 |
37.4 |
28.3 |
5.0 |
|
|
FW2.0/5.0 |
2.0 |
15 |
52.5 |
31.75 |
5.0 |
|
|
FW1.5/3.0 |
1.5 |
12 |
52.5 |
31.75 |
3.0 |
|
|
FW1.2/3.0 |
1.2 |
10 |
22.5 |
12.7 |
3.0 |
|
Range of applied ：
Widely used automatic line conveying such as light industrial machinery, sterilizers, silk printing and dyeing,food processing,power generation, pharmaceuticals, garment processing,etc .used for conveying line washing,drying,cooling, heat treatment, bread line,spiral tower conveying in refrigerating machinery, spraying, cleaning machine,and Heavy transport machinery etc.
